Point-to-Site Internet breakout through Azure Virtual WAN

This is an interesting one that has come up a few times with some customers who want to use forced tunnelling through a VPN to Azure for remote workers and NAT out to the Internet using a Microsoft public IP address. This is usually required as an additional security measure for easier user whitelisting through a single static public IP addresses for SaaS applications or potentially for geo-blocking situations.

My usual response is to take a look at the Azure Marketplace for a virtual appliance such as an NVA that supports this feature. This would by far be the most cost effective option but there is also a native option using Azure networking services.

Can’t I do this with a Point-to-Site connection on a VPN gateway?

No. Although forced tunnelling is supported by the VPN gateway by advertising custom default routes, the documentation clearly states that Internet bound traffic is dropped. This is by design.

How can I achieve this then?

Azure Virtual WAN is the answer. You will still have a Point-to-Site connection but routed through a secured Virtual Hub inside Azure Virtual WAN. Essentially, this means you are using Azure Virtual WAN as a virtual router and you will SNAT out to the Internet through a secured Virtual Hub such as Azure Firewall.

A rather complex and costly solution if this is all that you need the service for but I would imagine most organisations will have additional Azure networking requirements that can make use of these services also.


Everyone will have different requirements but I will run through the steps involved in setting this up from scratch. Remember, Azure Virtual WAN will handle all the routing and we will use Azure Firewall Manager to configure the secured Virtual Hub element so most of our configuration will be performed within these two services.

1. Deploy a Virtual WAN

This is a quick step. The important part is to make sure to choose the Standard SKU which is required to support Point-to-Site connections.

2. Create a Virtual Hub

This creates a Microsoft managed virtual network that will be used for all of the connectivity that we will be using in this tutorial..

Choose your own requirements in the settings and if you are only using VPN connections then set the routing preference to VPN.

You can configure your User VPN (Point-to-Site) gateway as required at this stage also. This must be configured through the Virtual Hub so don’t deploy any separate VPN gateway resources as these can’t be used.

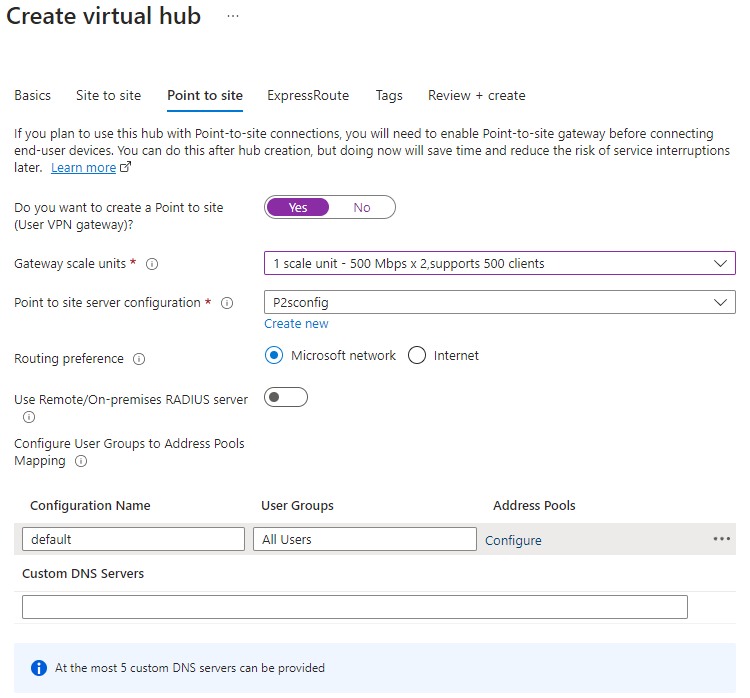

You can also create your Point-to-Site configuration from this blade. I will be using Azure AD authentication so if you want to use this then make sure to include OpenVPN support for this on the basics tab.
More details about how to configure Azure AD authentication for Point-to-Site VPNs can be found here.

Be prepared to wait about 40 minutes for this deployment to complete. This is mostly down to the VPN gateway deployment.

3. Create a firewall policy

This will be needed for the Azure Firewall that you will be deploying via Firewall Manager.

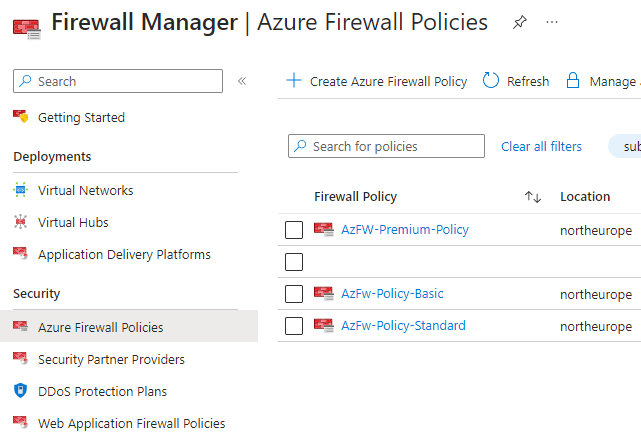

The firewall policy itself can also be created directly from Firewall Manager.

You will need to deploy either a Standard or Premium SKU Azure Firewall as the Basic SKU does not support the required routing configuration that we need to use. Therefore, select the required policy tier that you want and then configure the firewall policy as required.

Note: Azure Firewall denies traffic by default so you will need to ensure that you allow the necessary User VPN traffic to pass through the firewall.

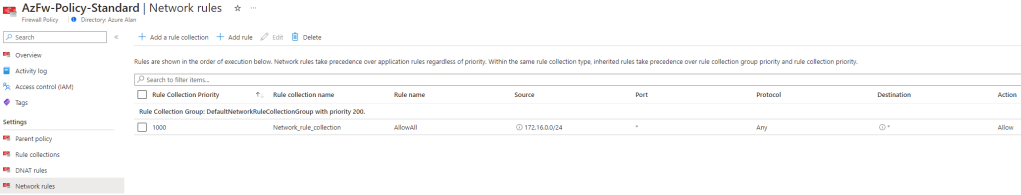

The below is an example of an outbound ‘Allow All’ network rule but ideally you should use more restrictive rules.

4. Add the policy to the Virtual Hub

This is performed again through the Firewall Manager. Just add the firewall policy that you created in the previous step to the Virtual Hub that you created earlier.

This process will create a new Azure Firewall resource and assign the firewall policy to it.

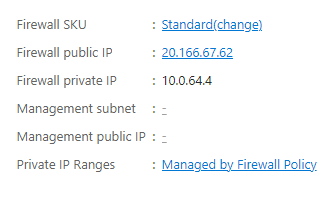

Note my public IP address assignment is:

5. Assign the security configuration

In the security configuration section of the Virtual Hub within Firewall Manager, set the Internet traffic drop-down to Azure Firewall and click save.

You will get a warning about the default route of the vWAN hub being updated so that the next hop is the Azure Firewall. This process will take about 10 minutes and will cause downtime for your Virtual Hub.

When this step has completed, make sure the User VPN configuration profile says it is ‘Secured by Azure Firewall‘. If it isn’t, then you can set this here now.

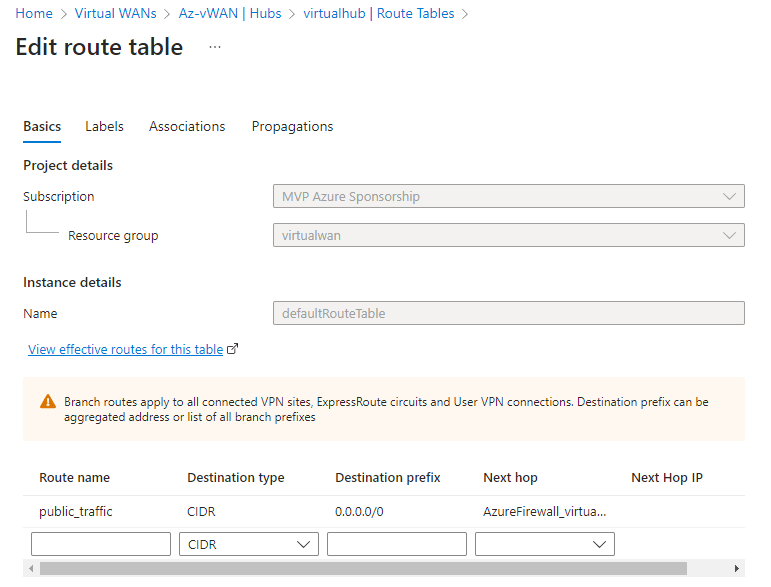

You can also confirm the default route has been modified by checking the route tables of the Virtual Hub.

We have now configured all Internet bound traffic on the Point-to-Site connection to route to Azure Firewall as the next hop.

6. Make sure ‘InternetSecurityFlag’ property is enabled

This step may be done already by default but it is a required property setting in order to used forced tunnelling on your Point-to-Site gateway so you should run a PowerShell script to ensure this property is set correctly.

$p2sgw = Get-AzP2sVpnGateway -ResourceGroupName "virtualwan"

Update-AzP2sVpnGateway -ResourceGroupName $p2sgw.ResourceGroupName -name $p2sgw.Name -EnableInternetSecurityFlag

7. Download, edit and import the User VPN profile config file

The final piece is to configure our user’s VPN client but we need to make a small config change to the VPN profile file first.

This automatically generated profile file can be downloaded from a few locations but it is recommended to download the WAN (global) level profile from the Virtual WAN resource rather than the Virtual Hub.

Extract the downloaded zip file and then open the azurevpnconfig.xml file in your favourite editor. You will need to make sure the <version> element is set to 2. This is required so that the VPN client can use the default route as otherwise you will only see private routes in your connection’s route table.

Change this item from 1 to 2 if necessary and save the file.

Now, import the profile into the Azure VPN client.

Note: You must be on at least version 2:1900:39.0 of the VPN client to support forced tunnelling.

Now we connect

Once connected, you should see the VPN connection has a single route of indicating that forced tunnelling is in place and all traffic is routing through the VPN connection.

With the VPN connected, if we browse to an IP checker website we can see that our remote user’s Internet traffic is SNATing out through the Azure Firewall’s public IP address.

If you have enabled logging in your firewall then you should see traffic flowing from your VPN client address pool range.


This is a working native Azure solution but just as a reminder Azure Virtual WAN combined with Azure Firewall is not a low cost solution, this will set you back well over $1,000 per month.

Therefore, I would generally only consider this particular setup as part of a larger Azure networking deployment for your organisation or customer.
